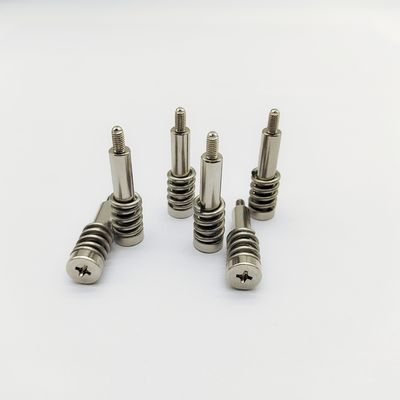

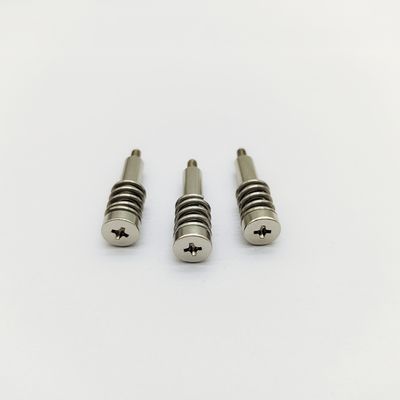

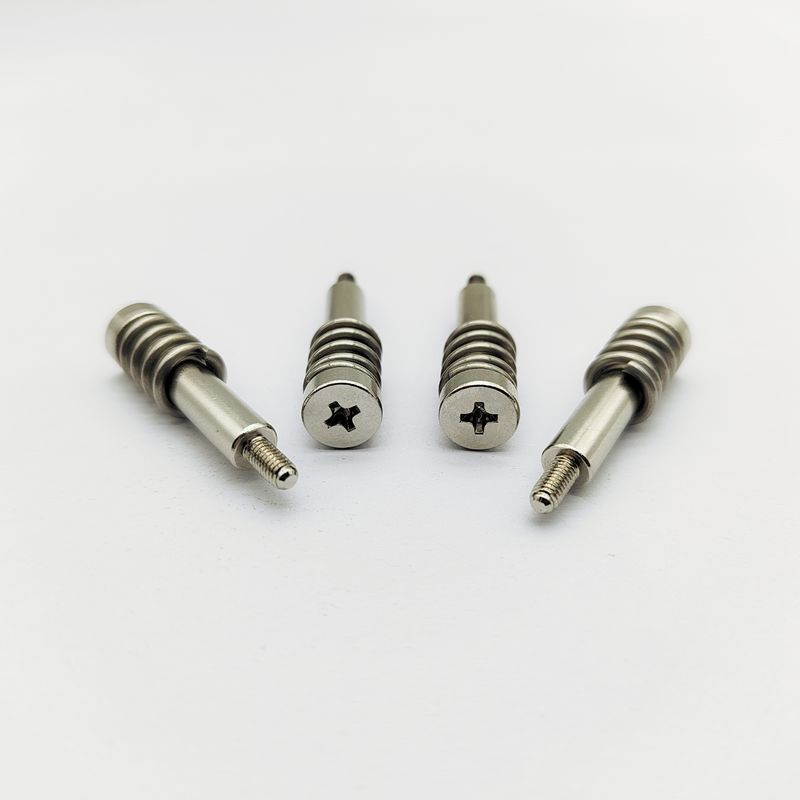

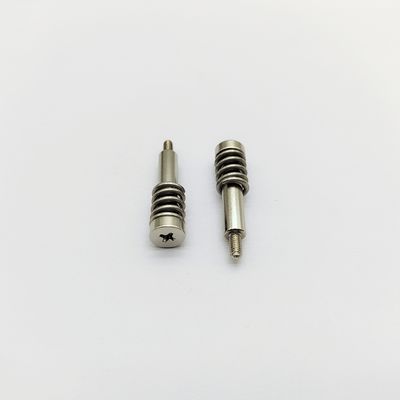

A4 Stainless Steel Shoulder Spring Screws M3 Phillips Drive 34mm
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | guanbiao |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | M3 |
| وثيقة: | guanbiao hardware PPT(new)P...DF.pdf |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50000 |
|---|---|
| الأسعار: | negotiable |
| تفاصيل التغليف: | كيس بلاستيكي + كرتون + منصة البليت |
| وقت التسليم: | 15-20 أيام العمل |
| شروط الدفع: | ر/ر |
| القدرة على العرض: | 5000000 |
|
معلومات تفصيلية |
|||
| تطبيق المنتج: | في الهواء الطلق والمعماري | مهلة: | 15 ~ 20 يوم عمل |
|---|---|---|---|
| فينش: | تم تجميعها مسبقًا ** (A4 الفولاذ المقاوم للصدأ) | مادة: | A4-80 (316) الفولاذ المقاوم للصدأ |
| متسامح: | +/- 0.05mm | مواصفة: | ISO |
| كمية: | حزمة 1000 | عينات: | عينات مجانية |
| الطول الكلي: | 34mm | نوع الموضوع: | رأس الكتف |
| سعة التحميل: | واسطة | قطر الربيع: | 3 مم |
| نوع القيادة: | فيليبس | ||
| إبراز: | A4 stainless steel spring screws,M3 Phillips drive shoulder screws,34mm spring loaded screws,M3 Phillips drive shoulder screws,34mm spring loaded screws |
||
منتوج وصف
A4 Stainless Steel Shoulder Spring Screws - M3 - Phillips Drive - Pre-assembled Spring - Corrosion Resistant
Premium A4-80 (316) stainless steel shoulder spring screws with long shoulder, Phillips drive, and pre-assembled spring. Features passivated finish for superior corrosion resistance. Ideal for marine, food processing, medical, and chemical equipment applications. Custom specifications available.
Technical Specifications
| Head Type | Shoulder Head |
|---|---|
| Head Diameter | 6.0mm (Standard for M3) |
| Shoulder Diameter | ~3.0mm (Smooth, unthreaded, acts as a guide) |
| Shoulder Length | ~22mm (Long, for spanning gaps or guiding components) |
| Drive Type | Phillips (PH2 size) |
| Total Length (L) | 34 mm (Fully Customizable) |
| Thread Length (L_t) | 6 mm (Fully Customizable) |
| Thread Diameter | M3 x 0.5mm |
| Spring | Pre-assembled (A4 Stainless Steel) |
| Material | A4-80 (316) Stainless Steel |
| Surface Treatment | Passivation (Standard) |
| Customization | All dimensions, materials (A2/A4) |
Primary Uses & Applications
- Marine & Offshore: Securing panels, instruments, and guards on boats and platforms where salt spray and corrosion are constant challenges.
- Food & Beverage Processing: Mounting components on machinery that requires frequent wash-downs with corrosive cleaners and must meet hygiene standards.
- Medical & Laboratory Equipment: Used in devices where corrosion resistance, cleanability, and reliable performance are non-negotiable.
- Chemical Industry: Applications with exposure to chemical vapors or splashes where component alignment is also needed.
- Outdoor & Architectural: Securing fittings and panels on outdoor structures or in humid environments.
How to Use
- Galling Prevention: Apply a stainless-steel specific anti-seize compound to the threads only before installation to prevent galling (thread cold-welding).
- Insertion: Insert the smooth shoulder through the clearance hole in the top component. Ensure the hole is clean and deburred.
- Driving: Use a high-quality PH2 bit to avoid cam-out. Drive the screw at a moderate, steady speed to minimize heat and friction.
- Tightening: Tighten until the spring is appropriately compressed and the assembly is secure. The shoulder guides the screw and prevents side load on the threads.
- Final Check: Ensure the assembly moves as intended (floats/pivots) without binding. The spring should compensate for thermal expansion and vibration.
Our Advantages
- 20+ years of screw production and custom development experience, providing cost-effective solutions for your fastener supply chain.
- Precision production equipment imported from Taiwan for manufacturing high-quality screws and hardware accessories. Free sample testing available.
- Complete quality management system with multiple strict monitoring checks for every batch of products.
- Dedicated account management and system-supporting services for seamless collaboration.
Support and Services
Our team of professionals provides comprehensive support for all aspects of our Spring Screws, including:
- Selection advice for the right type and size for your project
- Installation guidance and troubleshooting assistance
- Detailed product specifications and material safety data sheets
- Maintenance tips and best practices to extend product life
Packing and Shipping
Our Spring Screws are carefully packaged to ensure perfect condition upon arrival:
- Individually packed in moisture-resistant plastic bags within sturdy cardboard boxes
- Clear labeling with product information for easy identification
- Secure pallet shipping for bulk orders with shrink-wrapping and strapping
- Reliable courier services with tracking information provided
Our factory accepts customized drawings. Contact us to discuss specific certifications or other technical parameters for your project requirements.
